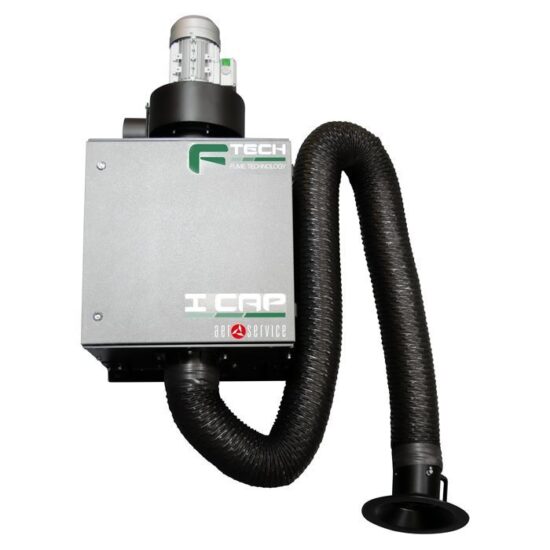

F-Tech ICAP 2.0 H Wall Mounted Welding Fume Extractor
$55.55
$80.55
Description • 230 or 400 Volt models available • High performance centrifugal extraction fan encased in a rugged soundproof compartment • Fixing holes on rear frame to allow wall mounting • 3mtr arm • 2500m3/hr max flow • 1480m3/hr max suction • Powerful 3 stage effective E12 filtration up to 99.5% • Filter Stages Stage 1 – Metallic pre-filter 25% Stage 2 – Corrugated polyester fibre pre-filter Stage 3 – Absolute filter E12HEPA • Durable steel with powder coated finish • Meets latest HSE regulations TECHNICAL DATA -Filter efficiency 99.5% -Motor power 1.5 Kw -Rated input voltage 230V and 400V models 50Hz -Flow rate pressure 2500m3/h (at hood) -Max Suction 1400m3/h -Noise levels 73dB(A) -Dimensions 508 x 747 x 759 mm -Weight 100 Kg – 5 year warranty on power source – 12 month warranty on arm
